ACCESSORIES

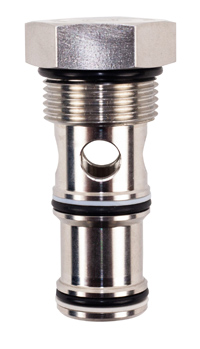

Cavity Plug
Cavity plugs can be used to block flow or redirect flow as necessary, can be used in any manifold.
- Materials 316 stainless steel.
- Available in in many sizes and variety of styles.
- Many seal options available.
- Available with orifice options.
- Lead-times are better than industry standard.
252 matches
| Symbol | Description | Specifications | Flow | Cavity | Orifice Size | 3D Model |
|---|---|---|---|---|---|---|
 |
8-2 Cavity Plug, All Ports Blocked, Buna-N, 316SST Part #: DCP08-2-1-NS316 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 3D Model | ||
|
8-2 Cavity Plug, All Ports Blocked, Viton, 316SST Part #: DCP08-2-1-VS316 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 3D Model | ||
|
10-2 Cavity Plug, All Ports Blocked, Buna-N, 316SST Part #: DCP10-2-1-NS316 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 3D Model | ||
|
12-2 Cavity Plug, All Ports Blocked, Buna-N, 316SST Part #: DCP12-2-1-NS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | ||
|
16-2 Cavity Plug, All Ports Blocked, Buna-N, 316SST Part #: DCP16-2-1-NS316 |
DCP-2 Spec Sheet: DCP-2 | 16-2 | 3D Model | ||
 |
8-2 Cavity Plug, All Ports Open, Buna-N, 316SST Part #: DCP08-2-2-NS316 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 3D Model | ||
|
10-2 Cavity Plug, All Ports Open, Buna-N, 316SST Part #: DCP10-2-2-NS316 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 3D Model | ||
|
12-2 Cavity Plug, All Ports Open, Buna-N, 316SST Part #: DCP12-2-2-NS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | ||
|
16-2 Cavity Plug, All Ports Open, Buna-N, 316SST Part #: DCP16-2-2-NS316 |
DCP-2 Spec Sheet: DCP-2 | 16-2 | 3D Model | ||
 |
10-2 Cavity Plug, .047 Orifice, Buna-N, 316SST Part #: DCP10-2-3-NS316-047 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.047 | 3D Model | |
| 8-2 Cavity Plug, All Ports Blocked, Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP08-2-1-RS316 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 3D Model | |||
| 8-2 Cavity Plug, All Ports Open, Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP08-2-2-RS316 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 3D Model | |||
| 8-2 Cavity Plug, All Ports Open., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP08-2-2-VS316 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 3D Model | |||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP08-2-3-NS316-015 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.015 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP08-2-3-NS316-031 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.031 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP08-2-3-NS316-047 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.047 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP08-2-3-NS316-070 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.070 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP08-2-3-RS316-015 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.015 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP08-2-3-RS316-031 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.031 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP08-2-3-RS316-047 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.047 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP08-2-3-RS316-070 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.070 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP08-2-3-VS316-015 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.015 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP08-2-3-VS316-031 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.031 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP08-2-3-VS316-047 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.047 | 3D Model | ||
| 8-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP08-2-3-VS316-070 |
DCP-2 Spec Sheet: DCP-2 | 8-2 | 0.070 | 3D Model | ||
| 10-2 Cavity Plug, All Ports Blocked., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP10-2-1-RS316 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 3D Model | |||
| 10-2 Cavity Plug, All Ports Blocked., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP10-2-1-VS316 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 3D Model | |||
| 10-2 Cavity Plug, All Ports Open., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP10-2-2-RS316 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 3D Model | |||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP10-2-3-NS316-015 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.015 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP10-2-3-NS316-031 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.031 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP10-2-3-NS316-070 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.070 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP10-2-3-RS316-015 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.015 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP10-2-3-RS316-031 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.031 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP10-2-3-RS316-047 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.047 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP10-2-3-RS316-070 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.070 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP10-2-3-VS316-015 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.015 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP10-2-3-VS316-031 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.031 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP10-2-3-VS316-047 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.047 | 3D Model | ||
| 10-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP10-2-3-VS316-070 |
DCP-2 Spec Sheet: DCP-2 | 10-2 | 0.070 | 3D Model | ||
| 12-2 Cavity Plug, All Ports Blocked., Nitrile (NBR, Buna N), 316 SST Part #: DCP12-2-1-NS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | |||
| 12-2 Cavity Plug, All Ports Blocked., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP12-2-1-RS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | |||
| 12-2 Cavity Plug, All Ports Blocked., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP12-2-1-VS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | |||
| 12-2 Cavity Plug, All Ports Open., Nitrile (NBR, Buna N), 316 SST Part #: DCP12-2-2-NS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | |||
| 12-2 Cavity Plug, All Ports Open., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP12-2-2-RS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | |||
| 12-2 Cavity Plug, All Ports Open., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP12-2-2-VS316 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 3D Model | |||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP12-2-3-NS316-015 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.015 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP12-2-3-NS316-031 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.031 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP12-2-3-NS316-047 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.047 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Nitrile (NBR, Buna N), 316 SST Part #: DCP12-2-3-NS316-070 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.070 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP12-2-3-RS316-015 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.015 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP12-2-3-RS316-031 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.031 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP12-2-3-RS316-047 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.047 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP12-2-3-RS316-070 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.070 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP12-2-3-VS316-015 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.015 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP12-2-3-VS316-031 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.031 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP12-2-3-VS316-047 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.047 | 3D Model | ||
| 12-2 Cavity Plug, Flow to 1 and 2 restricted with orifice., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP12-2-3-VS316-070 |
DCP-2 Spec Sheet: DCP-2 | 12-2 | 0.070 | 3D Model | ||
| 16-2 Cavity Plug, All Ports Blocked., Nitrile (NBR, Buna N), 316 SST Part #: DCP16-2-1-NS316 |
DCP-2 Spec Sheet: DCP-2 | 16-2 | 3D Model | |||
| 16-2 Cavity Plug, All Ports Blocked., Ethylene Propylene (EPR, EPM, EPDM), 316 SST Part #: DCP16-2-1-RS316 |
DCP-2 Spec Sheet: DCP-2 | 16-2 | 3D Model | |||
| 16-2 Cavity Plug, All Ports Blocked., Fluorocarbon (FKM, Florel, Viton), 316 SST Part #: DCP16-2-1-VS316 |
DCP-2 Spec Sheet: DCP-2 | 16-2 | 3D Model | |||
Results 1 to 60 of 252 | Next
Doering designs and manufactures precision valve and pump products. Many of our products are designed for high pressure,
zero-leak applications, and are available in a variety of materials, including Stainless Steel. We are constantly adding new products so
please contact us if you can't find what you are looking for.
