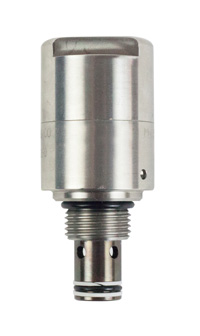

CARTRIDGE HYDRAULIC VALVE

High pressure pilot hydraulic directional control valve, spool valve, poppet valve many options

Doering high pressure pilot hydraulic cartridge valve controls high pressure (up to 7500 psi) with high pressure (100-5000 psi) pilot. When the valve receives pilot pressure the valve then functions per the schematic.

The hydraulic pilot valve features an isolation zone to prevent crossover of working port mediums to pilot medium.

Use our Valve Pilot Calculator to determine the best pilot ratio for your application.

Applications:

  • Explosion proof areas (intrinsic safe- no arcs, sparks or hot surfaces)
  • Automation
  • Any hydraulic system
  • Test systems where a high pressure valve is needed

Compatible Fluids:

Pilot- Hydraulic fluids, nitrogen, water glycol, and many other fluids or gases. Working area- Hydraulic fluids, nitrogen, water glycol, and many other fluids or gases.

Additional Options:

  • Spool valve or poppet valve styles available
  • Partial and full stainless steel options for food applications or corrosion resistance
  • Zero leak, soft seat valves, great for gas applications
  • Tamper-resistant
  • Orifice restriction options

Doering high pressure pilot hydraulic cartridge valve are manufactured in the USA with fast delivery of 10 days.

High Pressure pilot Hydraulic directional control valve, spool valve, Poppet valve many options
32 matches

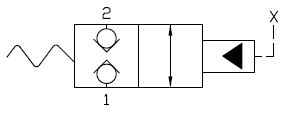

Symbol Description Specifications Flow Cavity 3D Model

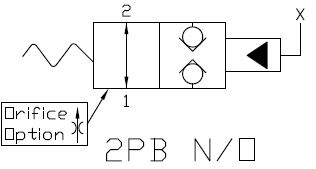

High Pressure pilot Hydraulic directional control High Pressure Valve, Poppet 2P/2W, N/O, SAE6, 26:1
Part #: 845276260
1201076 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Poppet 2P/2W, N/O, SAE6, 26:1
Part #: 825276260
1201076 5 GPM 8-23D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Poppet 2P/2W, N/O, 26:1, SS
Part #: 825272260SS
1201076 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Poppet 2P/2W N/O V 1/4NPT 26:1 SS316
Part #: 845272260VVSS316
1201076 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Poppet 2P/2W, N/O, SS
Part #: 825274260SS
1201076 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Poppet 2P/2W, N/O, SS316
Part #: 825272260SS316
1201076 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, 14:1
Part #: 84K4276141
1201424 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, 1/8 NPT 14:1
Part #: 824271141
1201424 5 GPM 8-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, SAE6 14:1
Part #: 824276141
1201424 5 GPM 8-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, 14:1, SS
Part #: 84B4276141SS
1201424 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, 14:1, SS316
Part #: 84KN4272141SS316
1201424 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, SAE4 26:1
Part #: 845274261
1201964 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, 26:1, SS
Part #: 845276261SS
1201964 5 GPM 10-23D Model

High Pressure pilot Hydraulic directional control High Pressue Valve, Poppet 2P/2W, N/C, 26:1 SS316
Part #: 845276261SS316
1201964 5 GPM 10-23D Model

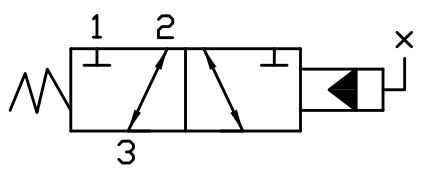

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, SAE4 FS-6
Part #: 544374396
1202424 5 GPM 10-33D Model

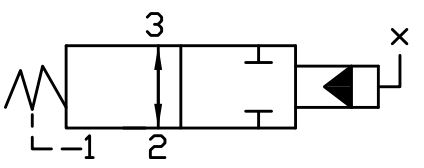

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, SAE6 FS-9
Part #: 544376399
1202424 5 GPM 10-33D Model

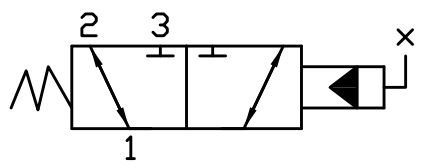

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, 1/8 NPT FS-0
Part #: 544371390
1202424 5 GPM 10-33D Model

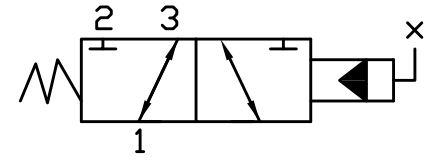

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, 1/4 NPT FS-1
Part #: 544372391
1202424 5 GPM 10-33D Model

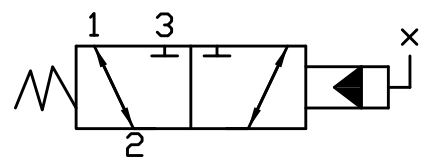

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-5, SS
Part #: 544374395SS
1202424 5 GPM 10-33D Model

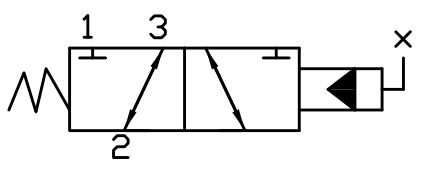

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, 1/4 NPT FS-2
Part #: 544372392
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-9, SS
Part #: 544376399SS
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-9 SS316
Part #: 544376399SS316
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-6, SS
Part #: 544376396SS
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-6 SS316
Part #: 544376396SS316
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-2, SS
Part #: 544374392SS
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-2 SS316
Part #: 544376392SS316
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-1, SS
Part #: 544371391SS
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-1 SS316
Part #: 544371391SS316
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-0, SS
Part #: 544376390SS
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-0 SS316
Part #: 544376390SS316
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W, 39:1, FS-5 SS316
Part #: 544372395SS316
1202424 5 GPM 10-33D Model

High Pressure pilot Hydraulic directional control High Pressure Valve, Spool 2P/3W 39:1 1/4 NPT FS-5 SS316
Part #: 544372395SS316
1202424 5 GPM 10-33D Model

Results 1 to 32 of 32
Doering designs and manufactures precision valve and pump products. Many of our products are designed for high pressure, zero-leak applications, and are available in a variety of materials, including Stainless Steel. We are constantly adding new products so please contact us if you can't find what you are looking for.
