CARTRIDGE HYDRAULIC VALVE

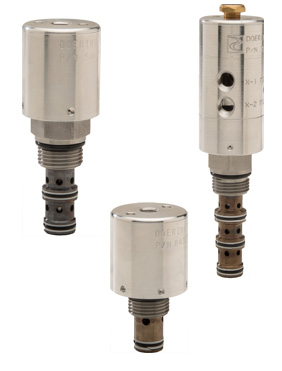

Air Pilot Valve

Doering Air Pilot Hydraulic Cartridge Valve Controls High Pressure (up to 5000 psi) with low pressure (50-150 psi).  Valves feature stainless steel seats in both spool and poppet options.

The Air pilot operated valve feature an Isolation Zone to prevent crossover of working port mediums to pilot medium.

Click here for our Valve Pilot Calculator to determine the best pilot ratio for your application.

Applications:
  • Explosion proof areas (Intrinsic Safe- No arcs, sparks or hot surfaces)
  • Automation
  • Hydrostatic pressure decay leak testing

Compatible Fluids:

Pilot- Air (pneumatic), different gases
Working area- Hydraulic fluids, nitrogen, water glycol, and many other fluids or gases.

Additional Options:
  • Partial and full stainless steel options for food applications or corrosion resistance
  • Zero leak, soft seat valves, great for gas applications
  • Tamper-resistant
  • Orifice restriction options
  • Venting options

Doering pneumatic pilot valves are manufactured in the USA with fast delivery of 10 days.

Air Pilot Valves
3625 matches
Symbol Description Specifications Flow Cavity 3D Model
Doering Cartridge Valve, POC, N/C, 40:1 Doering Cartridge Valve, POC, N/C, 40:1
Part #: 947204015
1200748 5 GPM 10-23D Model

Doering Cartridge Valve,POC , N/C, 104:1 Doering Cartridge Valve,POC , N/C, 104:1
Part #: 947710415
1200748 5 GPM 10-23D Model

Doering Cartridge Valve, POC, N/C, 33:1 Doering Cartridge Valve, POC, N/C, 33:1
Part #: 949603306
1200748 10 GPM 10-23D Model

Doering Cartridge Valve, POC, N/C, 19:1 Doering Cartridge Valve, POC, N/C, 19:1
Part #: 949201906
1200748 10 GPM 10-23D Model

Doering Cartridge  Valve, POC, N/C, 50:1 Doering Cartridge Valve, POC, N/C, 50:1
Part #: 949705006
1200748 10 GPM 10-23D Model

Doering Cartridge Valve, POC, N/C, 24:1 Doering Cartridge Valve, POC, N/C, 24:1
Part #: 949302406
1200748 10 GPM 10-23D Model

Doering Cartridge Valve, POC, N/C, 49:1 Doering Cartridge Valve, POC, N/C, 49:1
Part #: 947304915
1200748 5 GPM 10-23D Model

Doering Cartridge Valve, POC, N/C, 69:1 Doering Cartridge Valve, POC, N/C, 69:1
Part #: 947606915
1200748 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 40:1
Part #: 842270401
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 49:1
Part #: 843270491
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 69:1
Part #: 846270691
1200754 5 GPM 10-23D Model

Air-Pilot-Valve-3P_4W-FS-5.JPG Air Pilot Valve, 2P/2W, N/C, 104:1
Part #: 827271041
1200754 5 GPM 8-23D Model

Air-Pilot-Valve-3P_4W-FS-6.JPG Air Pilot Valve, 2P/2W, N/C, 104:1
Part #: 847271041
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 40:1, VSS
Part #: 822270401VVSS
1200754 5 GPM 8-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 40:1, SS316
Part #: 842270401SS316
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 49:1, SS
Part #: 843270491SS
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 49:1, SS316
Part #: 843270491SS316
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 69:1, SS
Part #: 846270691SS
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 69:1, SS316
Part #: 846270691SS316
1200754 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 40:1, SS
Part #: 822270401SS
1200754 5 GPM 8-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 40:1, SS316
Part #: 822270401SS316
1200754 5 GPM 8-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 49:1, SS
Part #: 823270491SS
1200754 5 GPM 8-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 49:1, SS316
Part #: 823270491SS316
1200754 5 GPM 8-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 69:1, SS
Part #: 826270691SS
1200754 5 GPM 8-23D Model

Air Pilot Valve Air Pilot Valve, 2P/2W, N/C, 69:1, SS316
Part #: 826270691SS316
1200754 5 GPM 8-23D Model

Doering Cartridge Valve, N/O, 49:1 Doering Cartridge Valve, N/O, 49:1
Part #: 823270490
1200755 5 GPM 8-23D Model

Doering Cartridge Valve, N/O, 69:1 Doering Cartridge Valve, N/O, 69:1
Part #: 826270690
1200755 5 GPM 8-23D Model

Doering Cartridge Valve, N/O, 104:1 Doering Cartridge Valve, N/O, 104:1
Part #: 827271040
1200755 5 GPM 8-23D Model

Doering Cartridge Valve, N/O, 40:1 Doering Cartridge Valve, N/O, 40:1
Part #: 822270400
1200755 5 GPM 8-23D Model

Doering Cartridge Valve, 2PB, N/O, 104:1 Doering Cartridge Valve, 2PB, N/O, 104:1
Part #: 827271040
1200755 5 GPM 8-23D Model

Doering Cartridge Valve, N/O, 40:1 Doering Cartridge Valve, N/O, 40:1
Part #: 842270400
1200755 5 GPM 10-23D Model

Doering Cartridge Valve, 2PB, N/O, 69:1 Doering Cartridge Valve, 2PB, N/O, 69:1
Part #: 826270690E
1200755 5 GPM 10-23D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-1
Part #: 542371081
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-0
Part #: 542371080
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-5
Part #: 542371085
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-0
Part #: 543371310
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-1
Part #: 543371311
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-5
Part #: 543371315
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-0
Part #: 546371830
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-1
Part #: 546371831
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-5
Part #: 546371835
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 277:1, FS-0
Part #: 547372770
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 277:1, FS-1
Part #: 547372771
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 277:1, FS-5
Part #: 547372775
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-5, SST
Part #: 542371085SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-0, SST
Part #: 543371310SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-1, SST
Part #: 543371311SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-5, SST
Part #: 543371315SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-0, SST
Part #: 546371830SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-1, SST
Part #: 546371831SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 277:1, FS-0, SST
Part #: 547372770SS
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-0, SS316
Part #: 542371080S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-1, SS316
Part #: 542371081S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 108:1, FS-5, SS316
Part #: 542371085S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-0, SS316
Part #: 543371310S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-1, SS316
Part #: 543371311S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 131:1, FS-5, SS316
Part #: 543371315S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-0, SS316
Part #: 546371830S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 183:1, FS-1, SS316
Part #: 546371831S316
1200798 5 GPM 10-33D Model

Air Pilot Valve Air Pilot Valve, 2P/3W, 277:1, FS-0, SS316
Part #: 547372770S316
1200798 5 GPM 10-33D Model

Results 1 to 60 of 3625  | Next
