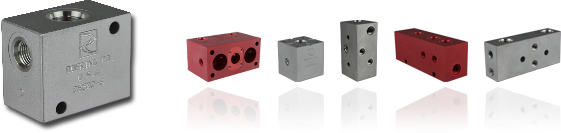

Housings

Product Selector / 3D Drawings
Product   Series Spec Sheet No.
Sup.
Housing, Line Mount
8-2 Size, Line Mount Housing   S8502 1200672
8-2 Size, Line Mount, Wide Body Style Housing   S8502W 1203123
10-2 Size, Line Mount Housing   S8542 1200674
10-2 Size, Line Mount, Wide Body Style Housing   S8542W 1201455
10-3 Size, Line Mount Housing   S8543 1200673
10-3 Size, Line Mount, Wide Body Style Housing   S8543W 1201903
10-4 Size, Line Mount Housing   S8544 1200675
10-4 Size, Line Mount, Wide Body Style Housing   S8544W 1202930
Housings, Panel Mount
8-2 Size, Panel Mount Housing   S8502PM 1202981
10-2 Size, Panel Mount Housing   S8542PM 1202982

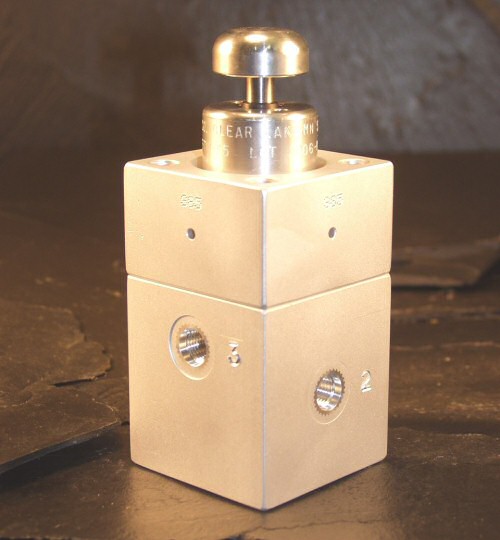

10-3 Size, Panel Mount Housing S8543PM 1202983
10-4 Size, Panel Mount Housing   S8544PM 1202984
Panel Mount Stand Offs SO- 1203290
Other Housings and Assemblies
DO3 to 8-4 Adapter   SC08-4-DO3 1201385
DO3 to 10-4 Adapter   SC10-4-DO3 1201385
Housing for Two Stage Decompression   SD2 1201268 1268
SD842 Housing for Two Stage Decompression   SD842 1203114
Housing for 3 Way Poppet, Directional or Pressure Control   S3M08 1200903 903
Housing for 3 Way Poppet, Directional or Pressure Control   S3M1008 1200905 903
Housing for 3 Way Poppet, Directional Control   S2831 1202831 2831
Housing for 3 Way Poppet, Directional Control   S2833 1202833 2831
Housing for 4 Way Poppet Function   SM408 1201804
Brake Release Pump Assembly   1201342 1201342
Housing for Pump and Needle Valve   S1552 1201552
Housing for Pump, Check Valve, Needle Valve, & Relief Valve   S1554 1201554

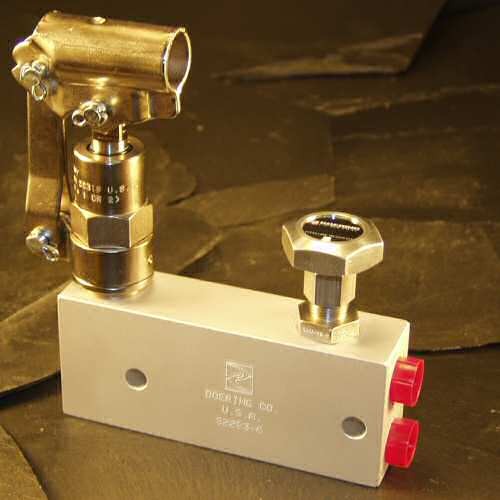

Housing for Pump & Valve S2962 1202962
Multi Valve Housing with C-8502 (8-2) Valve Cavities   S3407 1203407
Multi Station Manifold with C-8502 (8-2) Valve Cavities   S3398 1203398
Multi Station Manifold with C-8543 (10-3) Valve Cavities   S3431 1203431
Multi Station Manifold with C-8544 (10-4) Valve Cavities S3293 1203293
Cavities
C-8502 (8-2) Cavity Drawing     1200630
C-8542 (10-2) Cavity Drawing     1200621
C-8543 (10-3) Cavity Drawing     1200634
C-8544 (10-4) Cavity Drawing     1200671
