LOCK VALVE, PILOT OPERATED CHECK VALVE HYDRAULIC

Metro’s lock valves, is a pilot operated check valve, is designed to lock a hydraulic cylinder and prevent them from drifting due to hydraulic leak from a directional control valve being in the neutral position or worn hydraulic valves or even a hose failure.

Double Lock Valves: 407, 408 and 409, will lock a hydraulic cylinder in both directions.

Single Lock Valves: 411 and 412, will lock a hydraulic cylinder in one direction.

Applications:

  • Loaders, outriggers, backhoes, work platforms and cranes.
  • Any hydraulic circuit where you want to hold a cylinder in place with no hydraulic leakage.

Features:

  • Rated for 3,000 psi (207 bar)
  • Engineered for -22° to 194°F (-30° to 90°C) operating temperatures
  • Made in the USA
  • Fast 10-day delivery
Doering Metro 408 Dual Lock Valve, Double Pilot Operated Check Valve Hydraulic
23 matches
Symbol Description Specifications Flow Cavity 3D Model
Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual- Both Ends Adjustable, 1/4"-18 NPT
Part #: 407-02
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual- Both Ends Adjustable, 3/8"-18 NPT
Part #: 407-03
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual- Both Ends Adjustable, 1/2" - 14 NPT
Part #: 407-04
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual- Both Ends Adjustable, 3/4"-14 NPT
Part #: 407-05
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual- Both Ends Adjustable, #6 SAE, 9/16-18
Part #: 407-06
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual- Both Ends Adjustable, #8 SAE, 3/4" - 16
Part #: 407-08
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

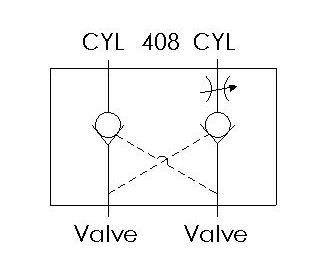

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-One End Adjustable, 1/4"-18 NPT
Part #: 408-02
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-One End Adjustable, 3/8"-18 NPT
Part #: 408-03
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-One End Adjustable, 1/2" - 14 NPT
Part #: 408-04
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-One End Adjustable, 3/4"-14 NPT
Part #: 408-05
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-One End Adjustable, #6 SAE, 9/16-18
Part #: 408-06
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-One End Adjustable, #8 SAE, 3/4" - 16
Part #: 408-08
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

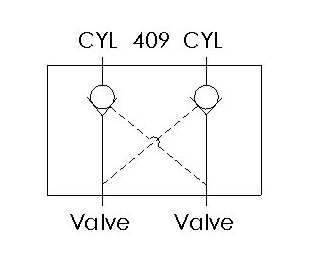

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, #4 SAE, 7/16"-20
Part #: 409-01
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, 1/4"-18 NPT
Part #: 409-02
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, 3/8"-18 NPT
Part #: 409-03
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, 1/2" - 14 NPT
Part #: 409-04
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, 3/4"-14 NPT
Part #: 409-05
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, #6 SAE, 9/16-18
Part #: 409-06
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Dual Lock Valve, Double Pilot Operated Ch Dual Lock Valve, Double Pilot Operated Check ValveDual-Non Adjustable, #8 SAE, 3/4" - 16
Part #: 409-08
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Lock Valve, Pilot Operated Check Valve Hy Lock Valve, Pilot Operated Check Valve Hydraulic Single- Non Adjustable, 3/8"-18 NPT
Part #: 411-03
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Lock Valve, Pilot Operated Check Valve Hy Lock Valve, Pilot Operated Check Valve Hydraulic Single- Non Adjustable, 1/2" - 14 NPT
Part #: 411-04
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Lock Valve, Pilot Operated Check Valve Hy Lock Valve, Pilot Operated Check Valve Hydraulic Single- Non Adjustable, #8 SAE, 3/4" - 16
Part #: 411-08
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Doering- Lock Valve, Pilot Operated Check Valve Hy Lock Valve, Pilot Operated Check Valve Hydraulic Single- Non Adjustable, #10 SAE, 7/8"-14
Part #: 411-10
Lock Valve, Pilot Operated Check Valve Hydraulic 30 GPM 3D Model

Results 1 to 23 of 23
Doering designs and manufactures precision valve and pump products. Many of our products are designed for high pressure, zero-leak applications, and are available in a variety of materials, including Stainless Steel. We are constantly adding new products so please contact us if you can't find what you are looking for.
